# Add Item weight

This setup uses the Basic template as an example. If you're using another template, apply the same steps to your version instead.

If your game uses an Encumbrance system where item weight matters, you can extend a template to support it.

# 1. Extend ItemBase

Add a Weight field to ItemBase.

ItemBase.cs
public class ItemBase : GDS.Core.ItemBase {
    public Class Class = Class.NoClass;
    public static readonly NoBase NoBase = new();
    public int Weight = 0; /*✚*/
}

Expose a Weight property in BasicItem that returns the base item's weight.

Item.cs
public record BasicItem : Item {
    public Rarity Rarity = Rarity.NoRarity;
    public string CustomName { get; init; }
    public string CustomIcon { get; init; }
    public int Weight => (Base as ItemBase).Weight; /*✚*/
}

# 2. Set Weights for Item Bases

For each item base that should have weight, assign an appropriate value to its Weight field.

Bases.cs
public static readonly ArmorBase WarriorHelmet = new() { Id = "WarriorHelmet", /*...*/ Weight = 10 /*✚*/};
public static readonly ArmorBase LeatherGloves = new() { Id = "LeatherGloves", /*...*/ Weight = 8 /*✚*/};
public static readonly ArmorBase LeatherArmor = new() { Id = "LeatherArmor", /*...*/ Weight = 7 /*✚*/};
public static readonly ArmorBase SteelBoots = new() { Id = "SteelBoots", /*...*/ Weight = 10 /*✚*/};

public static readonly WeaponBase Axe = new() { Id = "Axe", /*...*/ Weight = 13 /*✚*/};
public static readonly WeaponBase LongSword = new() { Id = "LongSword", /*...*/ Weight = 12 /*✚*/};
public static readonly WeaponBase ShortSword = new() { Id = "ShortSword", /*...*/ Weight = 11 /*✚*/};

# 3. Show Weight in Tooltips

To display item weight in the tooltip, update the Tooltip view.

This example uses a label but you can use an icon instead.

Tooltip.cs
VisualElement WeaponTooltip(WeaponItem item, string cost) => Div(
    NameLabel(item),
    RarityLabel(item),
    AffixLabel("Attack", item.Attack),
    AffixLabel("Attack Speed", item.AttackSpeed),
    AffixLabel("DPS", item.DPS),
    WeightLabel(item), /*✚*/
    CostLabel(cost)
);

VisualElement ArmorTooltip(ArmorItem item, string cost) => Div(
    NameLabel(item),
    RarityLabel(item),
    AffixLabel("Defense", item.Defense),
    WeightLabel(item), /*✚*/
    CostLabel(cost)
);

VisualElement DefaultTooltip(BasicItem item, string cost) => Div(
    NameLabel(item),
    RarityLabel(item),
    WeightLabel(item), /*✚*/
    CostLabel(cost)
);

Label WeightLabel(BasicItem item) => AffixLabel("Weight", item.Weight).SetVisible(item.Weight > 0); /*✚*/

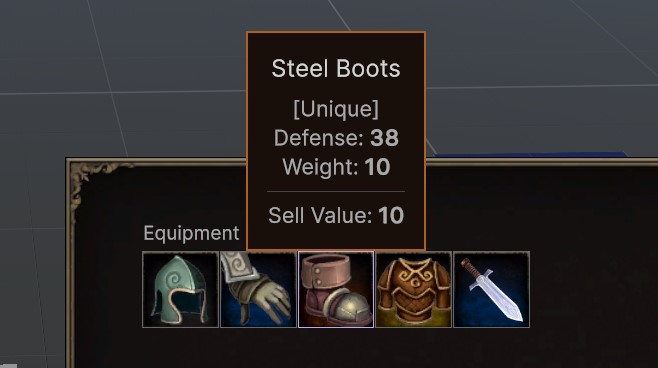

The Weight should show up in the Tooltip

# 4. Compute Total Weight

In order to show the total weight in the Character Sheet view, we need to add it to CharacterSheet class and recompute on equipment change.

CharacterSheet.cs
public record CharacterStats(int Defense, float Damage, float AttackSpeed, int Weight /*✚*/);
public Observable<CharacterStats> Stats;
public CharacterSheet(SetBag bag) {
    Stats = new(new(0, 0, 0, 0 /*✚*/));

    bag.Data.OnChange += (slots) => {
        int defense = 0, weight = 0 /*✚*/;
        float dps = 0f, aps = 0f;

        foreach (var slot in slots.Values) {
            if (slot.Item is not BasicItem item) continue;
            if (item is ArmorItem a) defense += a.Defense;
            if (item is WeaponItem b) { aps = b.AttackSpeed; dps = b.DPS; }
            weight += item.Weight; /*✚*/
        }

        Stats.SetValue(new(defense, dps, aps, weight /*✚*/));
    };
}

# 5. Update Character Sheet Window

Finally, update the CharacterSheetWindow class to show the total weight.

As a bonus, you can add color-coded encumbrance levels based on custom ranges — tweak these thresholds as needed.

CharacterSheetWindow.cs
public CharacterSheetWindow(CharacterSheet character) {

    var Defense = Label("character-line", "Defense");
    var DPS = Label("character-line", "DPS");
    var APS = Label("character-line", "Attack Speed");
    var Weight = Label("character-line", "Weight"); /*✚*/
    this.Add("window character-sheet gap-v-50",
        Components.CloseButton(character),
        Title("Character Sheet"),
        Div(Defense,
            DPS,
            APS,
            Weight /*✚*/
        )
    );

    this.Observe(character.Stats, (data) => {
        Defense.text = $"Defense: {DefenseText(data.Defense)}";
        DPS.text = $"Damage: {DamageText(data.Damage)}" + "/s".DarkGray();
        APS.text = $"Attack Speed: {data.AttackSpeed}" + "/s".DarkGray();
        Weight.text = $"Total Weight: {data.Weight} ({WeightText(data.Weight)})"; /*✚*/
    });

}

string WeightText(int value) => value switch {  /*✚*/
    >= 40 => "Heavy".Red(),                     /*✚*/
    >= 25 => "Medium".Yellow(),                 /*✚*/
    _ => "Light".Blue()                         /*✚*/
};                                              /*✚*/

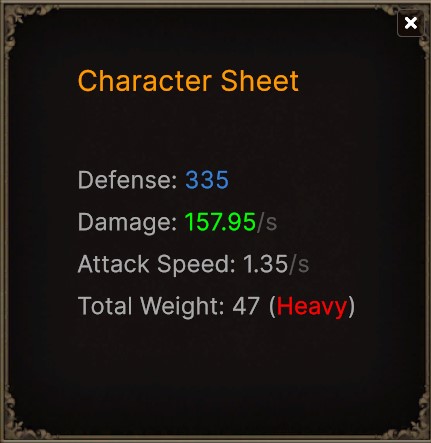

The Total Weight should show up in the Character Sheet
